HI-SCAN 9075
HI-SCAN 9075
HEIMANN X-RAY INSPECTION SYSTEM

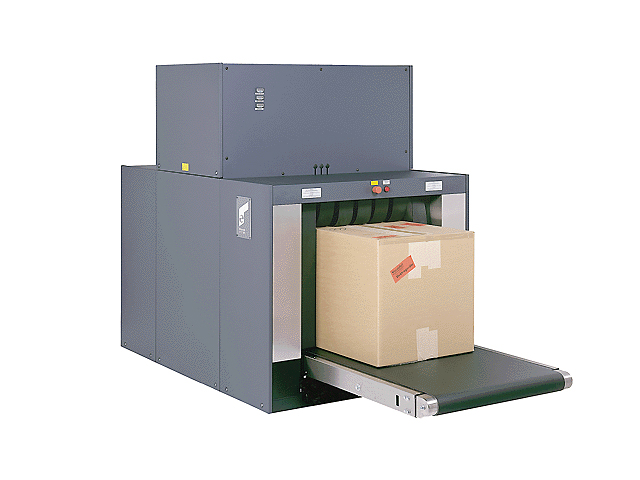

The HI-SCAN 9075 scans items up to a size of 90 cm x 76 cm (w x h), including bulky objects, oversized baggage and freight. Heavy objects can be easily placed on the conveyor belt, which is installed at a height of only 35 cm above the ground.
The low installation height of the HI-SCAN 9075 conveyor system facilitates the connection of supplementary feed- and/or discharge conveyor systems for heavy freight.
The HI-SCAN 9075 is also available as a mobile unit.
Feature highlights:
- Ideal method of inspecting oversized and bulky freight
- Ease of handling heavy goods via low conveyor belt
- HiTraX technology employing real-time image processing
- HI-MAT Plus: allows improved material classification
- IMS: image data management (optional)
- Ergonomically designed operating console features user-definable key functions
- Integral network interface
- Typical penetration: 30 mm of steel
- High-resolution detector line
Specifications Max. object size 900 (W) x 760 (H) [mm]
35.4” (W) x 29.9” (H) Dimensions 3040 (L) x 1290 (W) x 1840 (H) [mm]
119.6” (L) x 50.8” (W) x 72.4” (H) Weight approx. 850 kg
approx. 1874 lbs
HEIMANN X-RAY INSPECTION SYSTEM
The HI-SCAN 9075 scans items up to a size of 90 cm x 76 cm (w x h), including bulky objects, oversized baggage and freight. Heavy objects can be easily placed on the conveyor belt, which is installed at a height of only 35 cm above the ground.
The low installation height of the HI-SCAN 9075 conveyor system facilitates the connection of supplementary feed- and/or discharge conveyor systems for heavy freight.
The HI-SCAN 9075 is also available as a mobile unit.
Feature highlights:
- Ideal method of inspecting oversized and bulky freight
- Ease of handling heavy goods via low conveyor belt
- HiTraX technology employing real-time image processing
- HI-MAT Plus: allows improved material classification
- IMS: image data management (optional)
- Ergonomically designed operating console features user-definable key functions
- Integral network interface
- Typical penetration: 30 mm of steel
- High-resolution detector line
| Specifications | |
|---|---|
| Max. object size | 900 (W) x 760 (H) [mm] 35.4” (W) x 29.9” (H) |
| Dimensions | 3040 (L) x 1290 (W) x 1840 (H) [mm] 119.6” (L) x 50.8” (W) x 72.4” (H) |
| Weight | approx. 850 kg approx. 1874 lbs |
