HI-SCAN 5030 Si

HEIMANN X-RAY INSPECTION SYSTEM

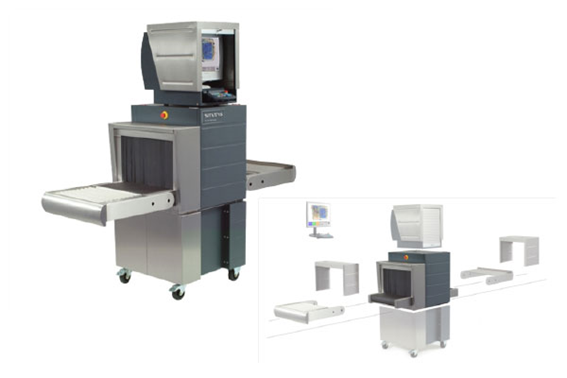

The HI-SCAN 5030si X-ray inspection system is part of a compact range that has achieved more than 3,000 installations worldwide. Planned in modular design as a tabletop system, HI-SCAN 5030si offers considerable flexibility, making it suitable for several different applications. Due to its small foot print and robust casters it is easily wheeled even through narrow spaces and over rugged terrain to any place where personal belongings and other items need to be screened

HI-SCAN 5030si is ideal for use in mailrooms, entrance halls, correctional and judicial facilites, schools and many other security sensitive areas, where contact-free inspection of pouches, bags, letters or packages is required.

Feature Highlights:

Compact and flexible solution for stationary and mobile applications
Tunnel opening of 50 x 30 cm
Easy to use
Typical penetration 16 mm of steel, wire resolution up to AWG 39

Specifications
Max. object size	530 (W) x 320 (H) [mm] 20.9” (W) x 12.6” (H)
Dimensions	1200 (L) x 705 (W) x 726 (H) [mm] 47,3” (L) x 27,7” (W) x 28,6” (H)
Weight	approx. 160 kg approx. 352 lbs
