HCVM e35
Compact, towable
HCVM e35 T
Feature Highlights:
Ultra compact and cost-effective 4MeV system
Compact and towable for rapid relocation and use at any location
Superior image quality and ultimate steel penetration
Safe system with no radioactive source
High throughput of up to 80 trucks per hour
Optional:

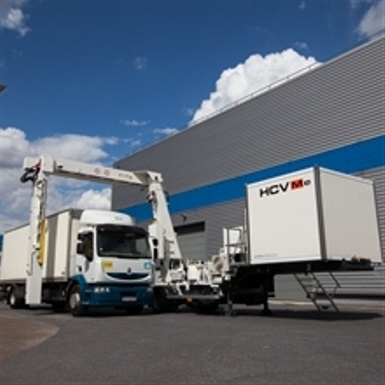

The HCVM e35 series is a powerful, ultra compact and fully integrated light mobile platform ideal for inspecting whole trucks, containers and vehicles, for threats such as explosives, narcotics, weapons of mass destruction (WMD) and contraband.
Due to the compact size and weight, The HCVM e35 T can be towed and positioned at any location, including space restricted areas, such as busy city environments. Inspections can be performed in pass-through or free-flow bumper to bumper* modes.
All our HCV cargo and vehicle inspection systems are supplied with our powerful CargoVision software platform, and DaiSy image interpretation application; aiding operators with the timely interpretation of results and verification of cargo, by providing detailed X-ray images, multiple customisable image treatments, options and comparison tools.
*driver and passenger screening is only available, where local rules and regulations permit.
- Specifications:
Minimum crew 1 image operator/driver and 1 traffic marshal Weight Less than 15tons (33,070lbs) Scanning speed 24 m/min; Passage of the trucks between 5-7km/h in pass through modeOperating temperature -20° to 43°C (-30° to 50°C option available);
-4° to 110°F C (-22° to 122°F option available)
