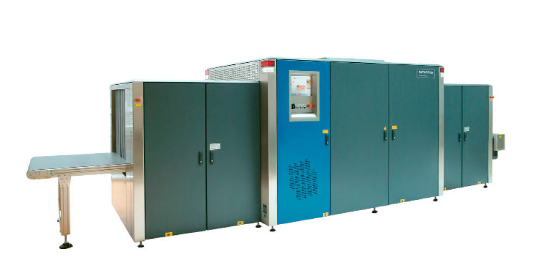

EHI-SCAN 10080 EDtS

HEIMANN X-RAY INSPECTION SYSTEM

EDtS cobines both physical signatures "Zeffective" (atomic number) and density. The analysis of both these critical elements allows the EDtS to offer the highest detection rate in its class.

Thanks to its detection capability, the EDtS is able to screen up to 1,800 bags per hour. Operating at 0.5 m/sec (ninety feet per minute),it has been specifically designed to meet the challenges of integration. The EDtS offers the ability to be integrated into existing or newly designed conveyor systems.

Feature highlights:

Approved according to EU regulation 1448/2006 - Standard 2
Automatic detection of explosives
Ideal for 100% screening environments
Throughput up to 1800 bags per hour
Operating at 0.5 m/sec

Specifications:

Max. object size	1060 (W) x 800 (H) x 1300 (L) [mm] 41.7" (W) x 31.5" (H) x 51.2" (L)
Dimensions	Core unit 3335 (L) x 2020 (W) x 2000 (H) [mm] 131.3" (L) x 79.5" (W) x 78.7" (H) Core unit incl. input- and output tunnel 4625 (L) x 2020 (W) x 2000 (H) [mm] 182.1” (L) x 79.5” (W) x 78.7" (H)
Weight	Core unit approx. 3800 kg approx. 8400 lbs Core unit incl. input- and output tunnel approx. 4500 kg approx. 9920 lbs
