ACE-ID
ACE-ID
Feature Highlights:
- Orbital Raster Scan (ORS) technology diffuses Raman laser energy to reduce the risk of heating/igniting explosives
- Rapidly identifies solids, liquids, gels and powders
- Proprietary mixture analysis software enables identification of up to two components within sample
- Integration software kit for remote operation and report generation
- Compact, robust and lightweight
- Easy to use, intuitive, graphical interfaces and requires minimal training
- MIL-STD-810G certified for use in harsh conditions and high temperatures.

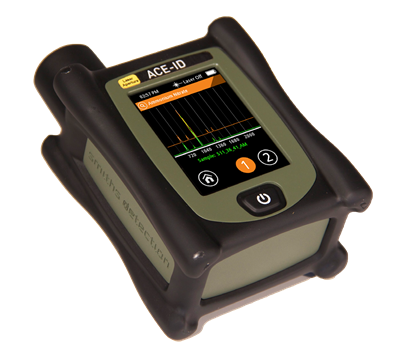

Utilizing Raman spectroscopy, ACE-ID enables non-contact analysis, yielding rapid results in seconds. Materials can be identified through translucent and semi-translucent containers such as plastic and glass. In addition, non-contact analysis is also supported by a software kit for remote operation.
ACE-ID is ruggedized for use in severe climates and terrains. It is lightweight and can be operated with just one hand. An intuitive software interface guides users through the entire identification process, making it easy-to-use by personnel of different skill levels including military explosive ordinance disposal technicians, civilian bomb squads and hazmat teams.
Specifications:
| Technology | Raman |
| Size | 12.7 x 8.9 x 5.6 cm (5 x 3.5 x 2.2 in) |
| Weight | 0.45kg (1lb) |
| Sampling | Point and shoot |
| Library | Approximately 500 substances including explosives, narcotics and toxic chemicals with user library capability via laptop software to add samples |
| Start-up time | Less than 20 sec at 20°C (68°F) |
| Detection time | Less than 20 sec at 20°C (68°F) |
| Power | One lithium battery (SureFire or CR123A) or USB power source |
| Display | Touchscreen display (compatible with level A PPE gloves) |
| Connectivity | Micro USB |
| Operating temperature | -20°C to +50°C (-4°F to 122°F) |
| Storage temperature range | -40°C to +70°C (-40°F to 158°F) |
| Operating humidity | >95% |
| Color | Olive drab |
