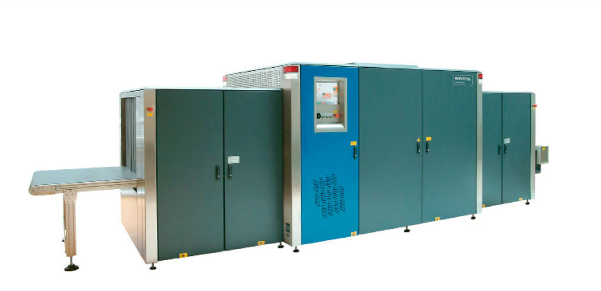

HI-SCAN 10080 EDX-2is


HI-SCAN 10080 EDX-2is

HEIMANN X-RAY INSPECTION SYSTEM



The HI-SCAN 10080 EDX-2is makes use of a dual view X-ray system to improve the evaluation process dramatically. Amongst others, this allows the operator virtually to ‘look behind’ hidden objects located within the baggage. Using this dual view system, the rate of bags being rejected is considerably reduced. Thus, the need for a re-inspection at further levels is reduced drastically.
Within the proven multi-level method of checked baggage screening, all baggage is screened automatically for explosives by a high-speed Level 1 system, the EDX-2is. Bags cleared by the EDX-2is continue to their determined destination while rejected bags are automatically diverted to a second security level for further inspection.


Feature highlights:

  • Dual view system
  • Approved according to EU regulation 1448/2006 - Standard 2
  • Automatic explosives detection system
  • System reaches highest rate of detection in its class
  • Tunnel opening 100 x 80 [cm] suitable for oversized luggage
  • Screening rate of up to 1800 luggage items per hour

                                                                                                           Specifications:

Max. object size 1060 (W) x 800 (H) x 3800 (L) [mm]
41.7" (W) x 31.5" (H) x 149.6" (L)
Dimensions 2900 (L) x 2140 (W) x 1900 (H) [mm]
114.2" (L) x 84.3" (W) x 74.8" (H)
Weight approx. 3000 kg
approx. 6614 lbs
